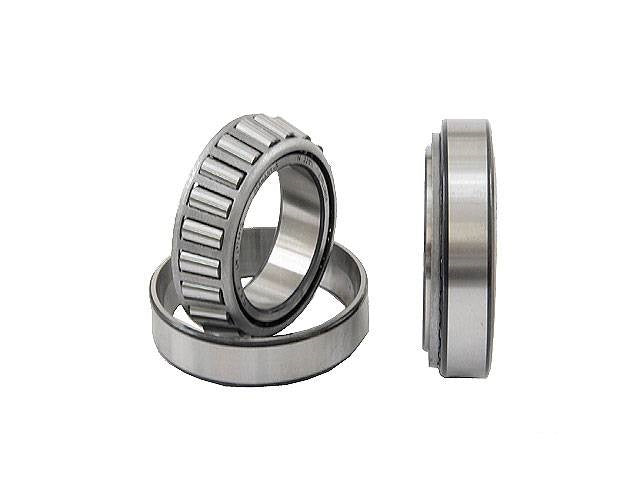

020 Differential Bearing Set.

SKF brand

DQ250 DSG OEM Differential Bearings

Will work on Wavetrac 185WK and 187WK.

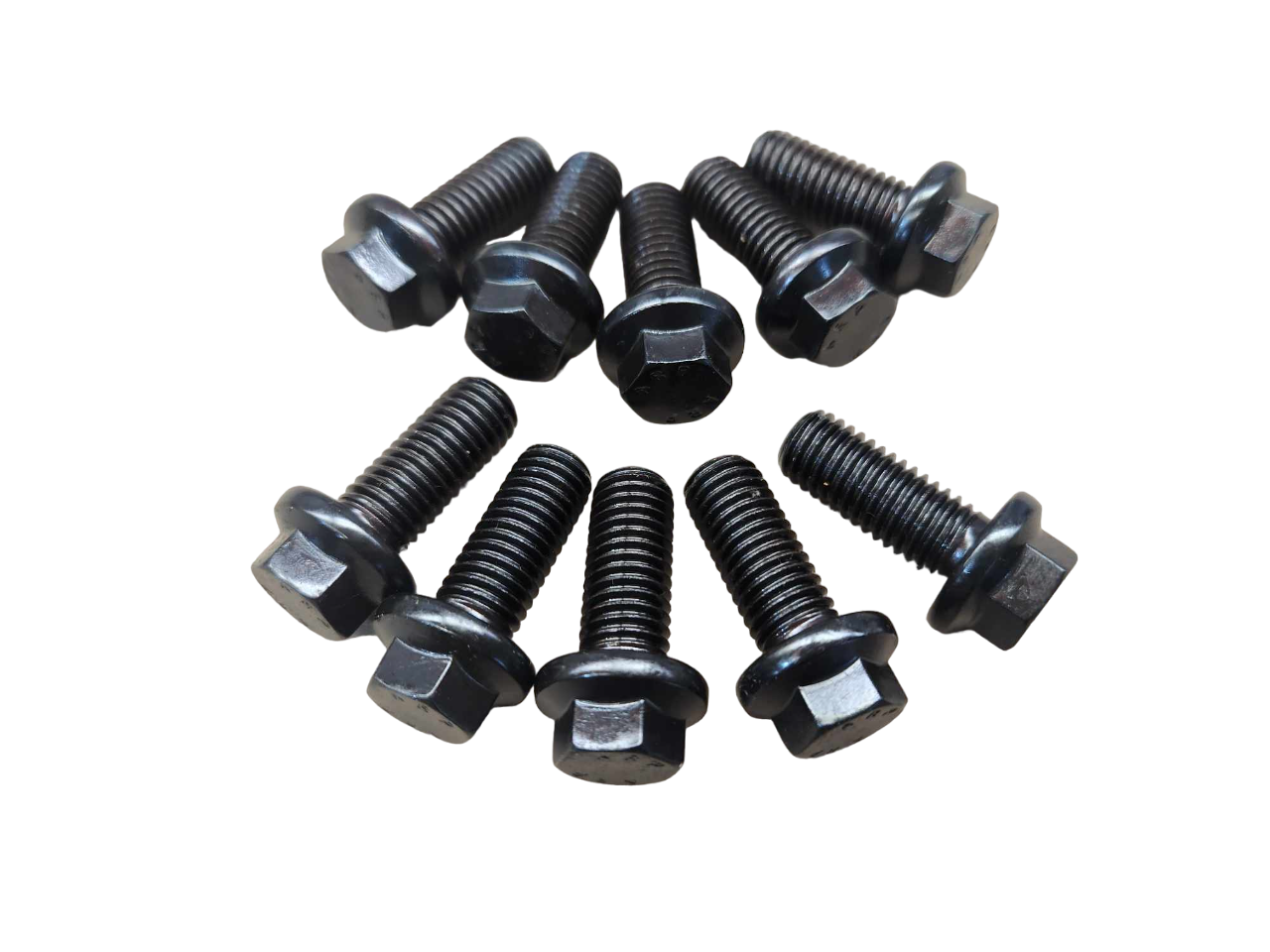

Mini Cooper S R56 & F56 ARP Differential Bolt Kit (10 piece)

M10 x 1.5 x 25mm(uhl)

Tighten to 70ft lbs and use Red Loctite

ARP # 204-3001

Since the factory differential and ring gear are riveted together at the factory, when installing a Wavetrac differential or a new ring and pinion in your 020, 02A, 02J, 02Q or 02M transmission, you must drill out the rivets and replace them with special bolts and nuts. These are available from Volkswagen and also other aftermarket sources.After losing confidence with the quality and/or having been dumbfounded by the outrageous prices for these parts from these sources, we at Autotech now offer what we know to be the highest quality bolt sets available for your differential installation. Produced for us by ARP, the world leader in high grade fasteners, our bolt kits are made from certified CHQ 8740 Chrome Moly material (rated well above aircraft quality). Threads are rolled after heat treat ensuring the finest threads that can be torqued more accurately without binding. The splines on our bolts are sized correctly for the crucial press-fit into the differential flange. We use ARP 12-point nuts rated at 180,000 psi or better. Bottom line: you won't find a better bolt set. You're buying the best differential available... now buy the best bolts to hold it!

Install Instructions

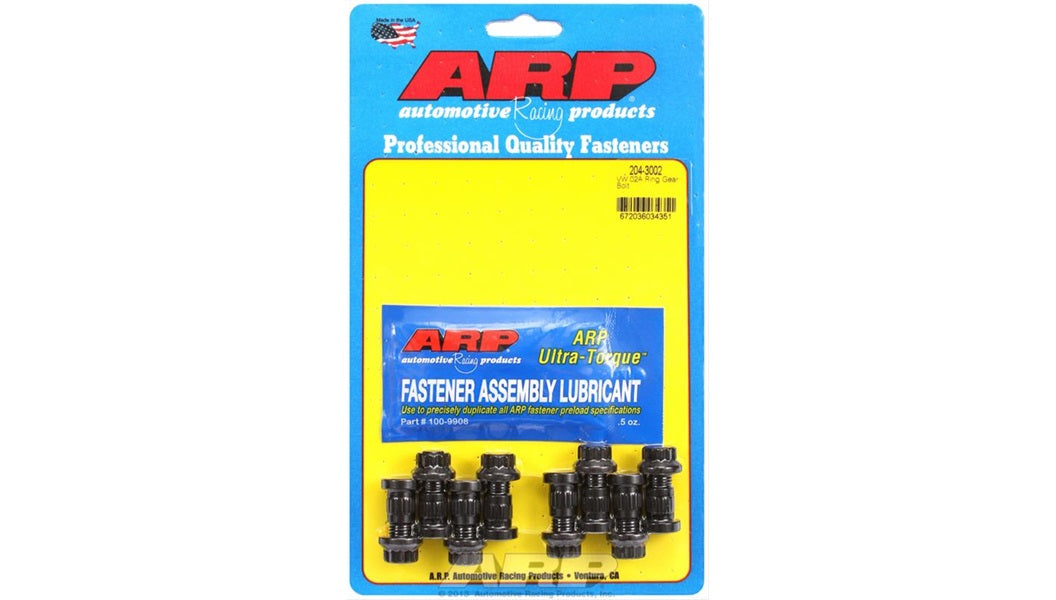

ARP # 204-3002

Since the factory differential and ring gear are riveted together at the factory, when installing a Wavetrac differential or a new ring and pinion in your 020, 02A, 02J, 02Q or 02M transmission, you must drill out the rivets and replace them with special bolts and nuts. These are available from Volkswagen and also other aftermarket sources.After losing confidence with the quality and/or having been dumbfounded by the outrageous prices for these parts from these sources, we at Autotech now offer what we know to be the highest quality bolt sets available for your differential installation. Produced for us by ARP, the world leader in high grade fasteners, our bolt kits are made from certified CHQ 8740 Chrome Moly material (rated well above aircraft quality). Threads are rolled after heat treat ensuring the finest threads that can be torqued more accurately without binding. The splines on our bolts are sized correctly for the crucial press-fit into the differential flange. We use ARP 12-point nuts rated at 180,000 psi or better. Bottom line: you won't find a better bolt set. You're buying the best differential available... now buy the best bolts to hold it!

Install Instructions

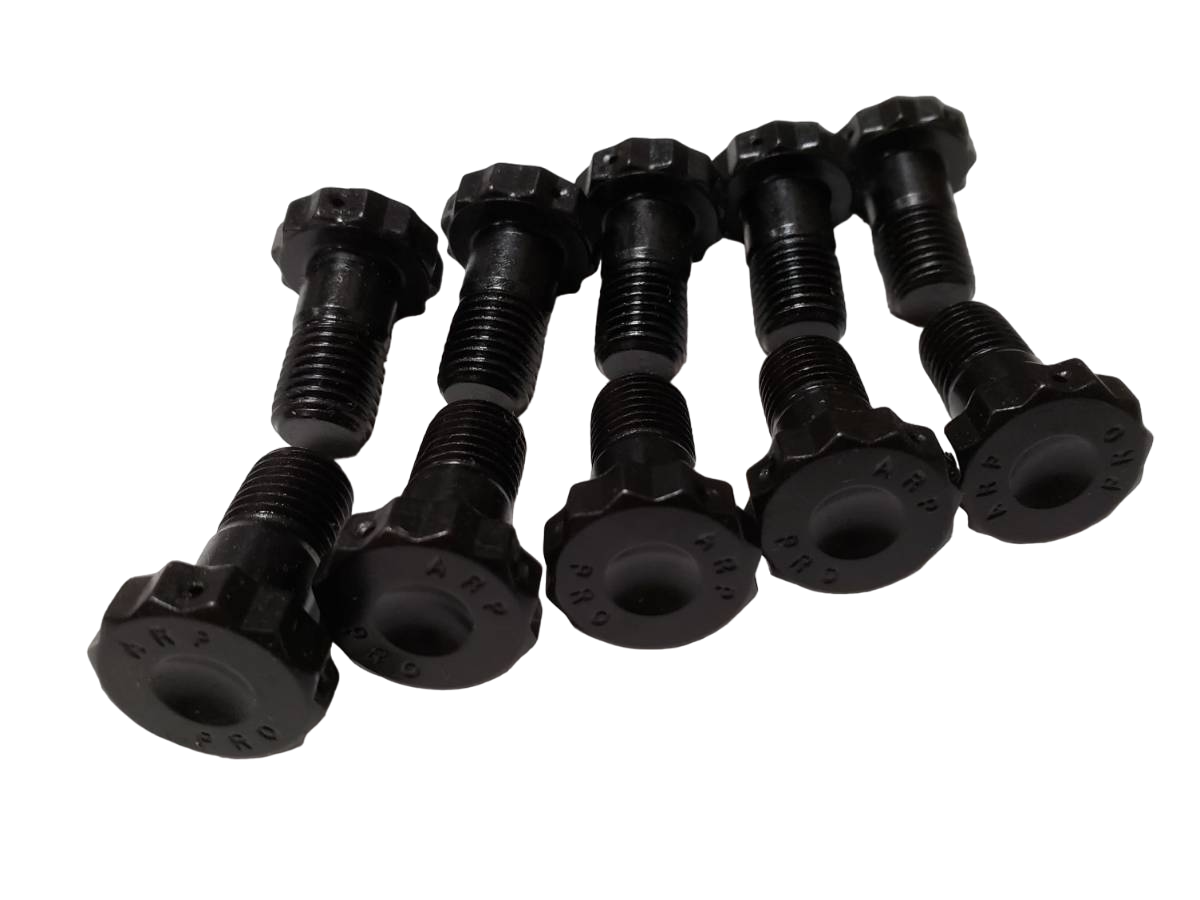

ARP Part # 204-3003

Since the factory differential and ring gear are riveted together at the factory, when installing a Wavetrac differential or a new ring and pinion in your 020, 02A, 02J, 02Q or 02M transmission, you must drill out the rivets and replace them with special bolts and nuts. These are available from Volkswagen and also other aftermarket sources.After losing confidence with the quality and/or having been dumbfounded by the outrageous prices for these parts from these sources, we at Autotech now offer what we know to be the highest quality bolt sets available for your differential installation. Produced for us by ARP, the world leader in high grade fasteners, our bolt kits are made from certified CHQ 8740 Chrome Moly material (rated well above aircraft quality). Threads are rolled after heat treat ensuring the finest threads that can be torqued more accurately without binding. The splines on our bolts are sized correctly for the crucial press-fit into the differential flange. We use ARP 12-point nuts rated at 180,000 psi or better. Bottom line: you won't find a better bolt set. You're buying the best differential available... now buy the best bolts to hold it!

10 bolts included with kit. For use on 188 axle 30-309-175WK 30-309-176WK.


update: also used for welded ring gear 215 axle 30-309-172WK 30-309-173WK 30-309-170WK


Tighten to 80 ft. lbs w/ red loctite

ARP Ring Gear Bolt Kit For BMW E-DIFF (12pc) for use with Wavetrac 30-309-160WK (welded OEM ring gear)

Torque to 125ft lbs to with red loctite

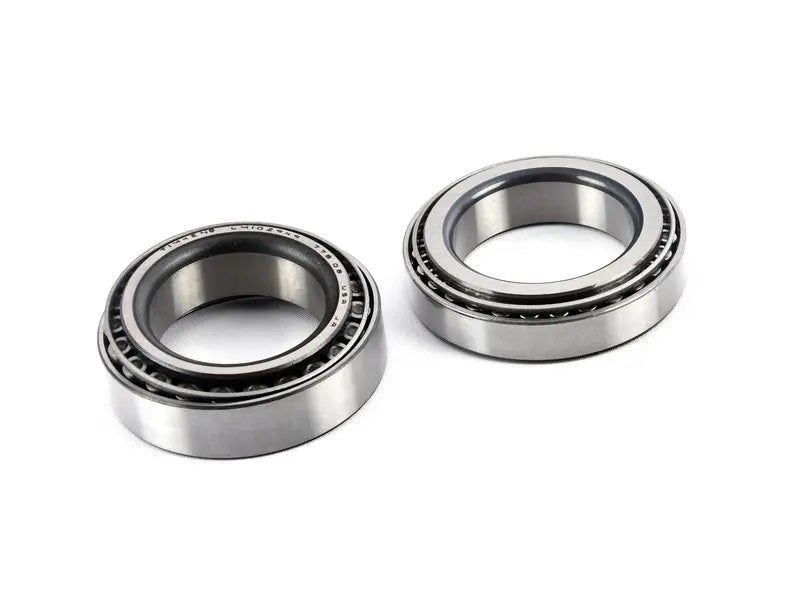

AWD 02E DSG Differential Bearing Kit

Will work on Wavetrac 186WK and 188WK.

Note: also fits 2WD models equipped with a factory Performance Pack VAQ Electronic Differential

Labor to separate and machine ring gear –

This is the labor to separate the ring gear from your OEM MQB open differential, machine it to the correct thickness, and drill the bolt pattern to allow it to be mounted to the Wavetrac differential PN 10-309-193WK.

To start this process you will need to drain your rear end, check OEM backlash, then remove the OEM differential from the housing. From there you’ll need to remove the bearings and box up your OEM differential to send to us. Make sure to both box and pad it well, and ALWAYS insure the shipment for the cost of a replacement should it get lost. From there it will take up to 3-4 weeks for us to perform this service. Once completed we will ship you back your finished OEM ring gear for you to mount to your Wavetrac differential, press bearings back on, and reinstall.

We will not be doing installs into rear ends at this time, so DO NOT send your complete rear end housing to us.

the 2nd photo will show you exactly what you will need to ship to Autotech/Wavetrac (here in California) for service

For rear 0AV:

Audi 8V S3 Quattro

Audi Mk3 TT-S Quattro

Volkswagen Mk7 Mk7.5 Mk8 Golf R AWD

ARP Ring Gear Bolt Kit For BMW E36 (10pc) for use with Wavetrac 30-309-150WK (bolted OEM ring gear)

Torque to 125ft lbs to with red loctite

M14 X 1.5 X 24

Replacement for Factory BMW part number: 33132227347

3' E36   (03/1992 — 08/1999)
8' E31   (02/1992 — 10/1996)
Z3 E36   (04/1996 — 07/2000)

Some models require a M12 bolt so please make sure your car uses the BMW part number listed above for M14

OEM Porsche PDK Tapered Inner Carrier Bearing

part # 9G13328628A

OEM Porsche PDK Tapered Outer Carrier Bearing

part # LM806649/10

02A 02J 02JB Differential Bearing Kit

Q=2 BEARINGS
Q=2 RACES

for 5 speed manual VW 02A 02J 02J-B

Multiple shim sizes for Wavetrac DSG 10-309-185WK through 10-309-188WK

AWD and 2WD DQ250

aftermarket kit

Autotech has made it easy to install your new 02J-B Wavetrac differential.

Using ARP's superlative bolt kit as the basis, we have sourced the necessary end cover gasket, carrier bearings, speedometer drive gear and o-rings from Volkswagen required for a successful installation. Save time and money!

MK5-MK7 5-speed VW 02J-B, 02S 2004+

Kit contents:

2 OEM differential carrier bearings/races
1 OEM VW Speedometer drive gear
1 OEM VW 5th gear end cover gasket
4 OEM VW selector shaft o-rings
4 OEM VW pinion shaft support o-rings

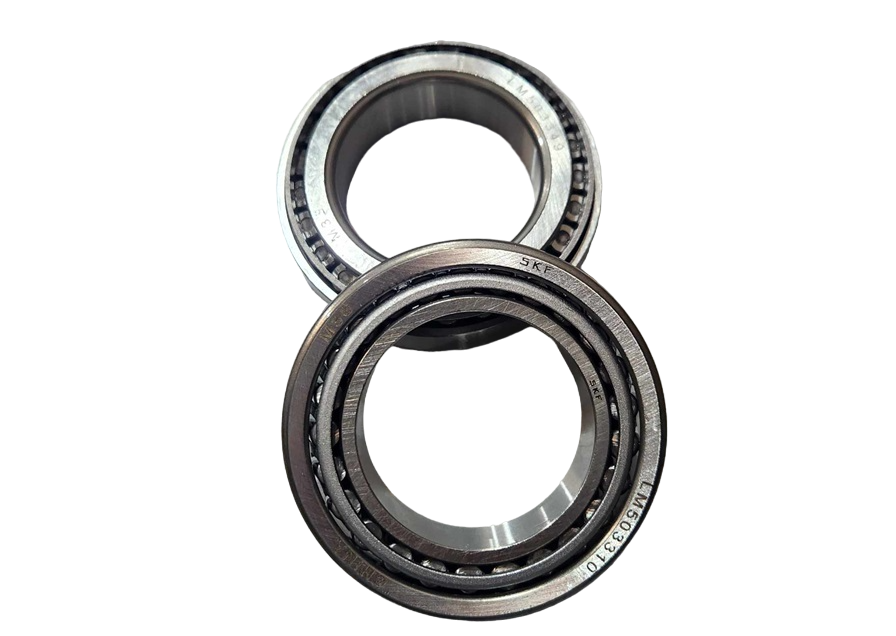

02M Differential Bearing Set. Fits both 2WD and AWD.

These bearings for 02M are symmetrical so right and left are interchangeable.

SKF brand

02Q OEM Differential Bearing Kit (2 piece)



Note: also fits 2WD models equipped with a factory Performance Pack VAQ Electronic Differential
